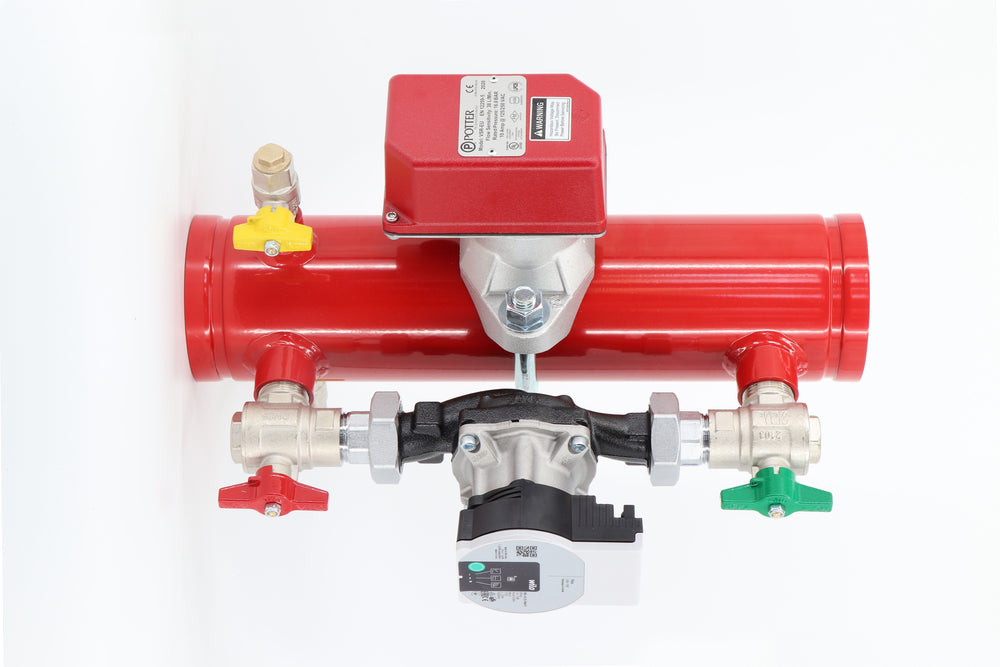

The Zonecheck unit is a purpose-built device designed to simplify the mandatory testing of flow-switches in fire sprinkler systems. Each Zonecheck includes an approved flow-switch, a testing pump, and a circulation loop—all integrated into a compact unit for ease of use and code compliance.
When testing is required, activating the system via a local key-switch initiates the pump, circulating water across the flow-switch at a rate that simulates the discharge of a single sprinkler head, in full accordance with industry standards.
Key Operational Benefits
Code-Compliant Testing: Simulates flow required to trigger the flow-switch without the need for discharging water to drain.
Local Activation: The built-in key-switch enables localized testing, displaying both flow-switch activation and valve status in real time.
No Fire Pump Activation: Zonecheck operates independently of the fire pump, reducing coordination efforts and minimizing the risk of false alarms during routine maintenance.
Sustainable Operation: By recirculating water within a closed loop, Zonecheck eliminates waste and lowers operational costs.
Part Number: ZON044065
Descriptions: 65mm LPCB Right Hand Zonecheck Assembly c/w Key Switch
Part Number: ZON044065L
Descriptions: 65mm LPCB Left Hand Zonecheck Assembly c/w Key Switch
Part Number: ZON044080
Descriptions: 80mm LPCB Right Hand Zonecheck Assembly c/w Keyswitch
Part Number: ZON044080L
Descriptions: 80mm LPCB Left Hand Zonecheck Assembly c/w Keyswitch
Part Number: ZON044100
Descriptions: 100mm LPCB Assembled Right Hand Zonecheck c/w Keyswitch
Part Number: ZON044100L
Descriptions: 100mm LPCB Left Hand Zonecheck Assembly c/w Key Switch
Part Number: ZONE044150
Descriptions: 150mm LPCB Assembled Right Hand Zonecheck c/w Key Switch
Part Number: ZONE044150L
Descriptions: 150mm LPCB Left Handed Zonecheck Assembly c/w Key Switch
Part Number: SWI044MK2SWITCH
Descriptions: MK2 Key Switch For Zonecheck Assembly 220v and 50hz
Part Number: ZONE044PUMP
Descriptions: Complete Pump Including Casting - GREEN ONE
Either build up your requirements for us to quote via the quote basket, call us on 01724 854199 or email sales@fireprotectioncentre.com. We would be happy to assist you.
