Grooved Butterfly Valves

Grooved Butterfly Valves

Approved Valves for Fire Sprinkler Systems

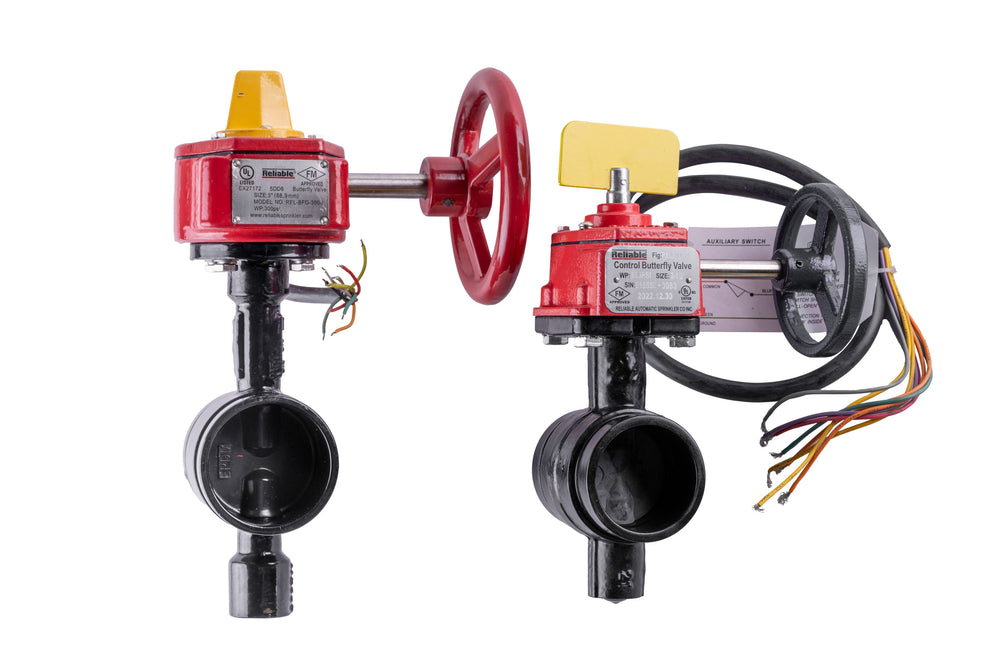

Reliable Supervised Butterfly Valves are approved for use in fire sprinkler systems and are designed with AWWA C606 grooved end connections for ease of installation.

Available in a wide range of nominal sizes—including 2-1/2”, 76mm, 3”, 4”, 5”, 6”, 165mm, 8”, and 10”—these valves are rated for a maximum working pressure of 300 psi (20.7 bar) and a temperature of up to 212°F (100°C).

Each valve includes a tapped, plugged port on both the supply and discharge sides of the disc. Wire harness options include a standard 9” (0.23 m) set of leads and an extended 39” (1 m) set for international installations.

Prior to installation, verify material compatibility of the REL300GT and REL300GTC models with the water supply and environmental conditions.

See pdf for more technical details
  • Part Number
  • Product Description
  • Datasheet
  • Part Number: BUT018GR065N

    Descriptions: 300PSI rmally OPEN Grooved FM/UL Double Tap 2½" / 65mm (76mm) Ext. cable REL300GT

  • Part Number: BUT018GR080

    Descriptions: 80mm Butterfly Valve FM/UL Grooved 300 PSI

  • Part Number: BUT018GR100

    Descriptions: 100mm Butterfly Valve FM/UL Grooved 300 PSI (Rasco)

  • Part Number: BUT018GR150HP

    Descriptions: RASCO Butterfly Valve 363 PSI rmally OPEN Grooved FM/UL Double Tap 6" / 150mm (165mm) Ext. cable REL363GT

  • Part Number: BUT018GR200N

    Descriptions: RASCO Butterfly Valve 300PSI rmally OPEN Grooved FM/UL Double Tap 8" / 200mm Ext. cable REL300GT
