Ball Float Valves

Ball Float Valves

Pressure/Temperature Ratings, Connection Standards, and Construction Materials

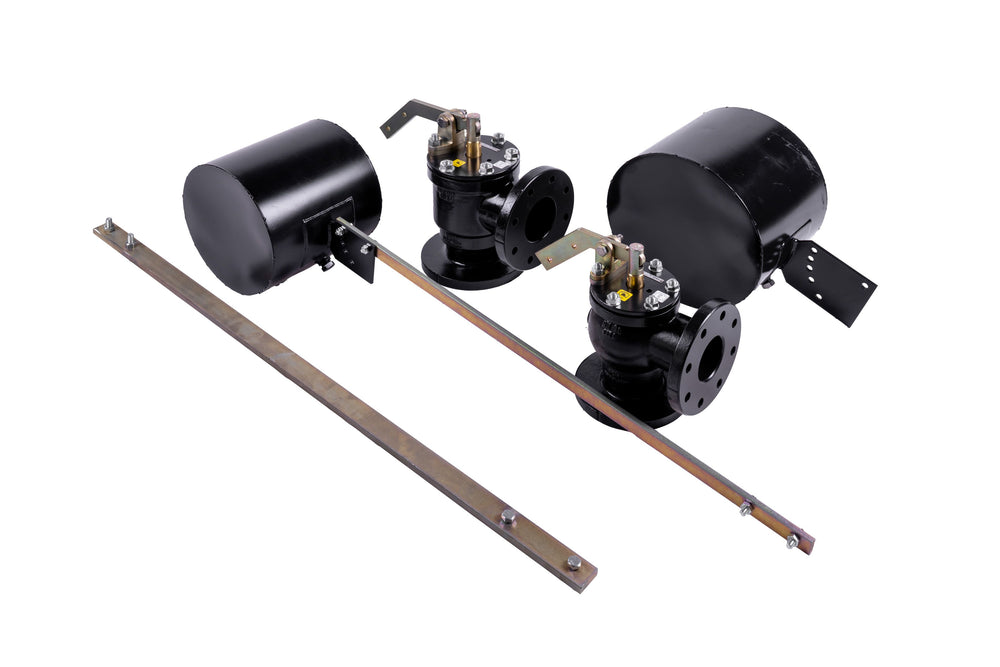

This industrial-grade float valve is engineered for precise water level control in large-scale storage and distribution systems. Designed with a bolted cover plate, the valve protects critical internal components—including the seal and cylinder—from the ingress of debris, enhancing operational reliability and extending service life.

The valve is supplied with line flanges conforming to BS Table F dimensions. Unless otherwise specified, the inlet flange is drilled to match the order-specified standard. The outlet flange is supplied undrilled unless requested.

Key Features:

  • Bolted cover plate: Prevents debris ingress
  • Maintenance-friendly design: Easily replaceable piston
  • Sealing mechanism: Steel-reinforced EPDM rubber disc for reliable sealing
  • Water level control: Adjustable float for precision
  • Industrial suitability: Built for demanding applications requiring durability, easy maintenance, and compliance with multiple flange standards
  • Part Number
  • Product Description
  • Datasheet

  • Part Number: VLV028BALLFLOAT050

    Descriptions: 50mm PN16/PN10 Flanged Complete Equilibrium Ball Float Valve

    View PDF

  • Part Number: VLV028BALLFLOAT080

    Descriptions: 80mm PN16 Equilibrium Complete Ball Float Valve

    View PDF

  • Part Number: VLV028BALLFLOAT100

    Descriptions: 100mm PN16 Flanged Complete Equilibrium Ball Float Valve

    View PDF

  • Part Number: VLV028BALLFLOAT150

    Descriptions: 150mm PN16 Flanged & Drilled BS4504 Equilibrium Complete Ball Float Valve

    View PDF
