Flexible Sprinkler Hose & Drops

Flexible Sprinkler Hose & Drops

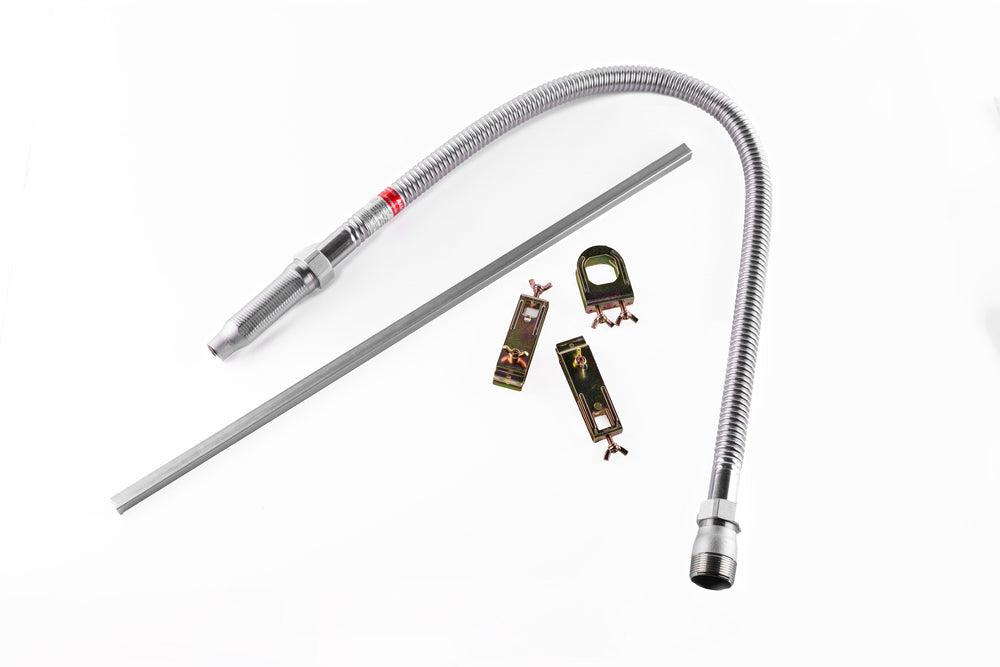

Reliable, Adjustable, and Easy-to-Install Stainless Steel Hose Assemblies

RASCOFLEX® Sprinkler Connections are designed to provide a flexible and efficient solution for connecting branch lines to sprinklers. Made from high-quality stainless steel, these hose assemblies come in both braided and unbraided configurations, offering flexibility for various installation environments. They are available in five nominal lengths, ranging from 28” (700mm) to 71” (1800mm), to suit a wide range of sprinkler system layouts.

Key Features:

Flexible Stainless Steel Hose – Braided or unbraided options for varied applications

Inlet Connections – Available in 1” (25mm) or 1-1/4” (32mm), with NPT or BSPT threads

Sprinkler Connection – Seven reducer, straight, or elbow options with 1/2” or 3/4”, NPT or BSPT outlet connections

Adjustable Outlet Bracket – Simplifies horizontal and vertical sprinkler positioning

Model RF Specifications – External diameter of 28mm and internal nominal of 25mm

Extended Length Outlet – 5-5/16” (135mm) for easy installation of pendent and concealed sprinklers

Wing Nuts – Provide ease of installation and adjustment

No Cutting, Welding, or Threading – Facilitates simple installation and future layout changes

Ceiling Tile Clearance – Extended height for easy installation and removal of ceiling tiles

RASCOFLEX® Sprinkler Connections are ideal for projects where flexibility and ease of installation are key. They avoid the need for cutting, welding, or threading of drops, allowing for quick and efficient system setup, as well as future adjustments.

See pdf for more technical details

  • Part Number
  • Product Description
  • Datasheet
  • Part Number: FLEX0181000X025FM

    Descriptions: 1000mm Long LPC/FM Approved RASCO Braided Flexible Sprinkler Drop Connection 25mm Inlet 15mm Outlet

  • Part Number: FLEX0181000X025LPC

    Descriptions: 1000mm Long LPCB Approved RASCO Unbraided Flexible Sprinkler Drop Connection 25mm Inlet 15mm Outlet

  • Part Number: FLEX0181000X032B

    Descriptions: 1000mm Long LPCB Approved RASCO Braided Flexible Sprinkler Drop Connection 32mm Inlet 15mm Outlet

  • Part Number: FLEX0181000X032LPC

    Descriptions: 1000mm Long LPCB Approved RASCO Unbraided Flexible Sprinkler Drop Connection 32mm Inlet 15mm Outlet

  • Part Number: FLEX0181200X025FM

    Descriptions: 1200mm Long LPC/FM Approved RASCO Braided Flexible Sprinkler Drop Connection 25mm Inlet 15mm Outlet

  • Part Number: FLEX0181200X025LPC

    Descriptions: 1200mm Long LPCB Approved RASCO Unbraided Flexible Sprinkler Drop Connection 25mm Inlet 15mm Outlet

  • Part Number: FLEX0181200X032B

    Descriptions: 1200mm Long LPCB Approved RASCO Braided Flexible Sprinkler Drop Connection 32mm Inlet 15mm Outlet

  • Part Number: FLEX0181200X032LPC

    Descriptions: 1200mm Long LPCB Approved RASCO Unbraided Flexible Sprinkler Drop Connection 32mm Inlet 15mm Outlet
